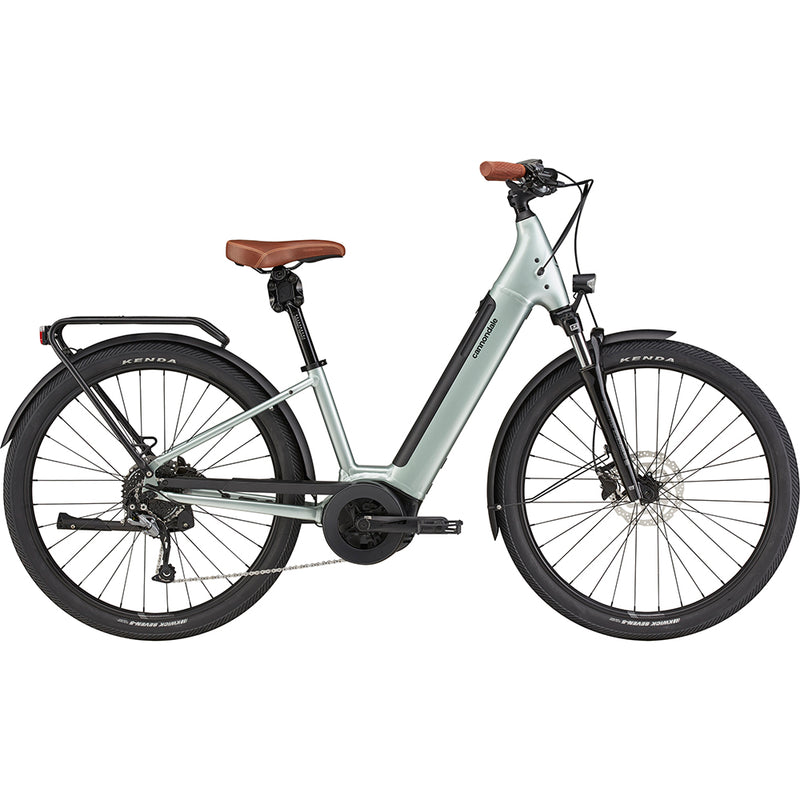

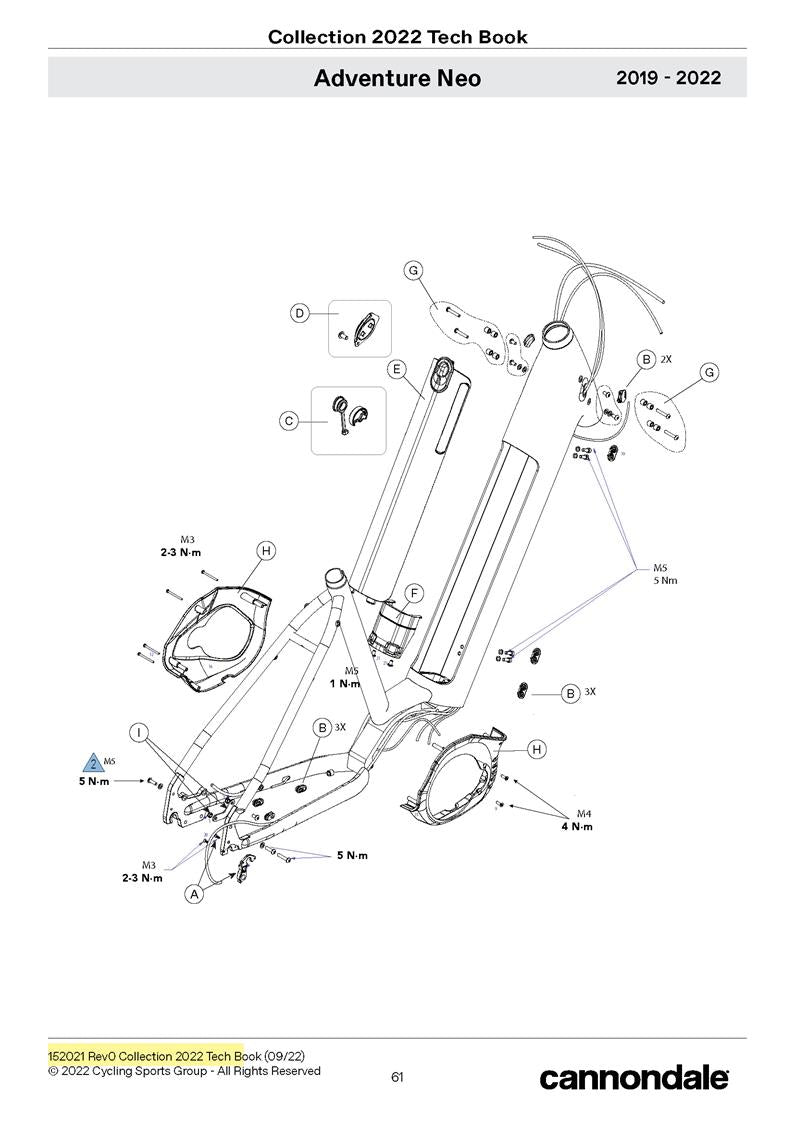

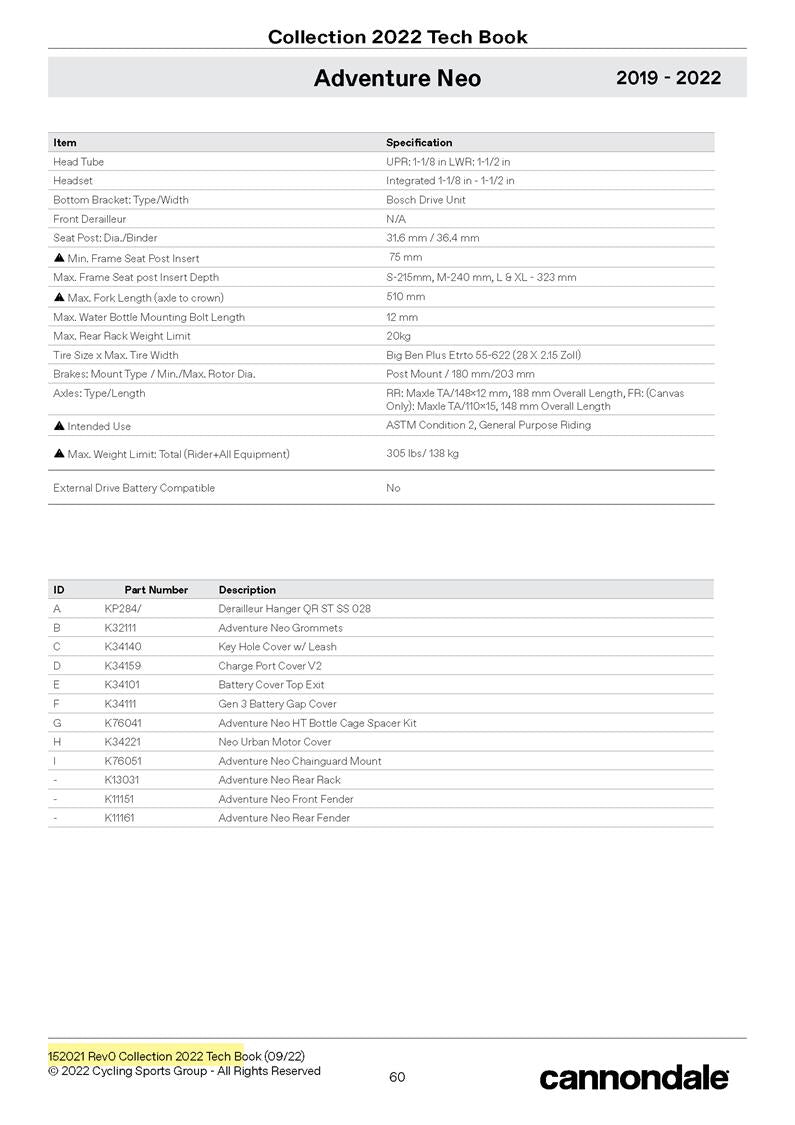

Adventure Neo 2019 - 2022 Spares
- Head Tube - Upper 1-1/8 in, LWR 1-1/2 in
- Headset - Integrated 1-1/8 in - 1-1/2 in
- Bottom Bracket: Type / Width - Bosch Drive Unit
- Front Derailleur - N/A
- Seat Post: Dia./Binder - 31.6mm/36.4mm
- Min. Seat Post Insert - 75 mm
- Max. Frame Seat post Insert Depth - S-215mm, M-240 mm, L & XL - 323 mm
- Tire Size x Max. Width - Big Ben Plus ETRTO 55-622 (28 X 2.15 Zoll)
- Max. Fork Length - 510mm
- Max. Water Bottle Mounting Bolt Length - 12mm

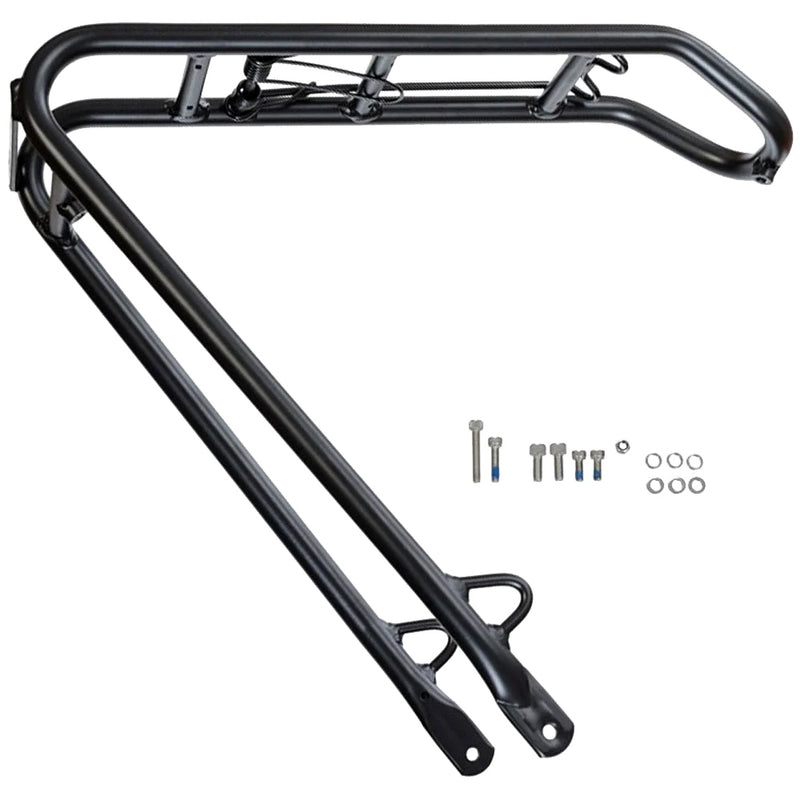

- Max. Rear Rack Weight Limit - 20kg
- Brakes: Mount Type/Min/Max Rotor Diameter - Post Mount / 180 mm/203 mm
- Axles: Type/Length - RR: Maxle TA/148x12 mm, 188 mm Overall Length
- Max. Weight Limit: Total - 138kg
- External Battery Compatible - No
