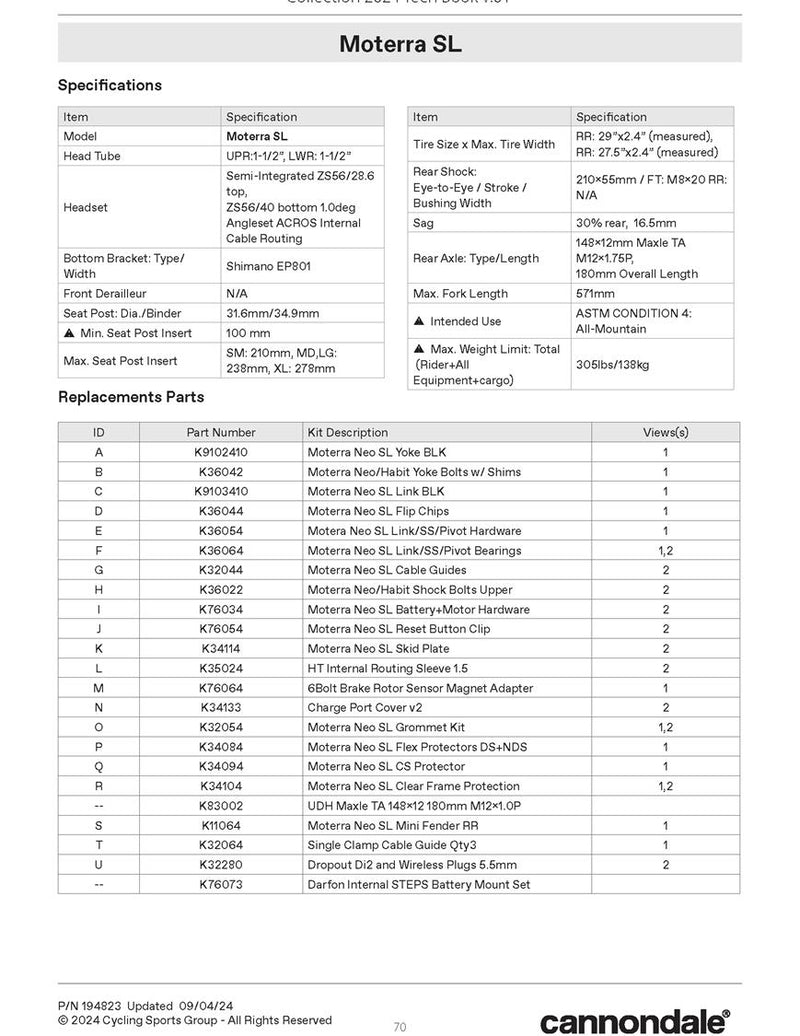

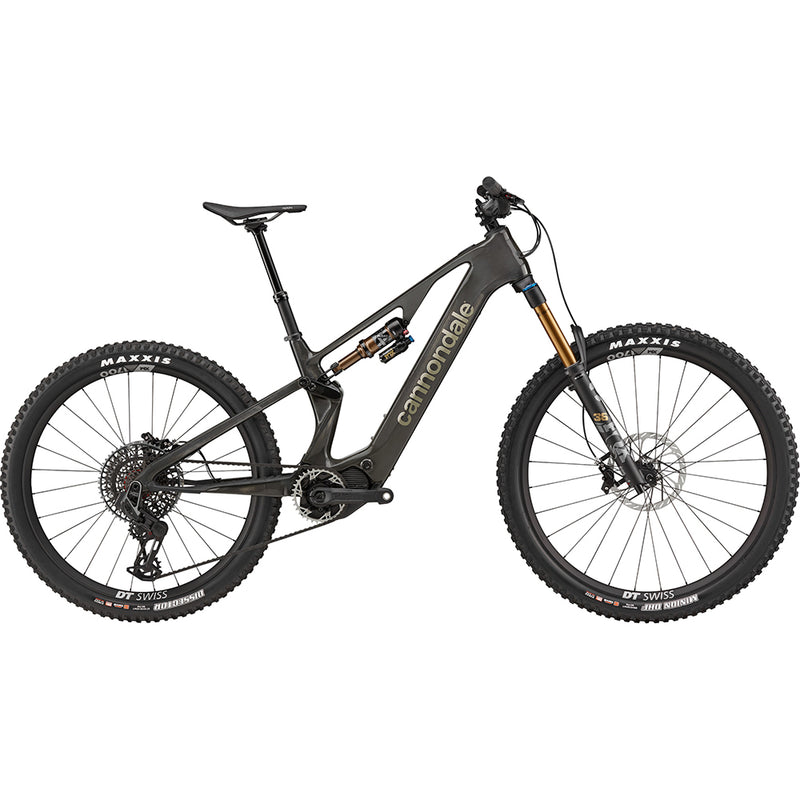

Moterra SL Carbon 2023+ Spares
- Drive System - Shimano EP 801
- Battery - Dafon 601Wh
- Rear Travel - 150mm
- Head Tube - UPR: 1-1/2” LWR: 1-1/2”
- Headset - Semi-Integrated ZS56/40 bottom 1.0deg Angleset ACROS Internal Cable Routing
- Bottom Bracket: Type / Width - Shimano EP 801
- Front Derailleur - N/A
- Seat Post: Dia./Binder - 31.6mm/34.9mm
- Min. Seat Post Insert - 100 mm
- Max. Frame Seat Post Insert Depth - SM: 210mm MD,LG: 238mm, XL: 278mm
- Tire Size x Max. Width - RR: 29"x2.4" (measured), RR: 27.5"x2.4" (measured)
- Max. Fork Length - 571mm
- Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 210x55mm / FT: M8x20 RR: N/A
- Sag - 30% / 16.5mm
- Axles: Type/Length - 148x12mm Maxle TA M12x1.75P, 180mm Overall Length
- Max. Weight Limit: Total - 138kg
