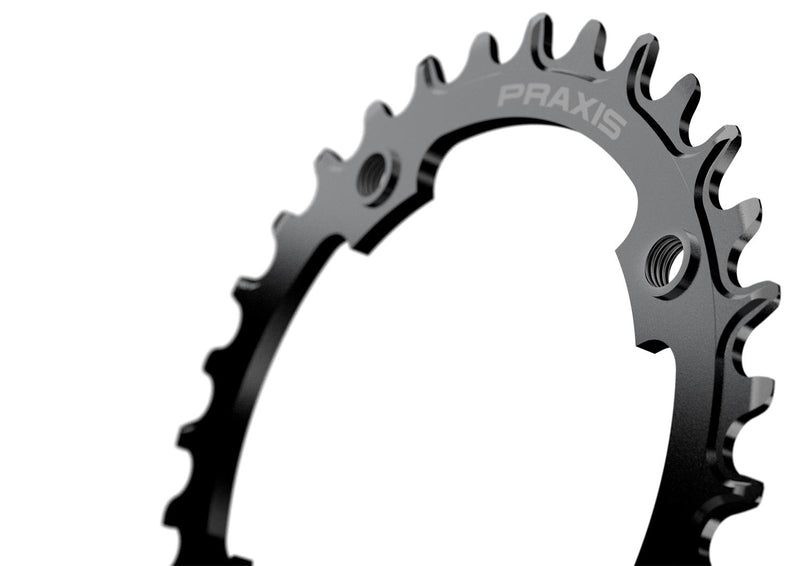

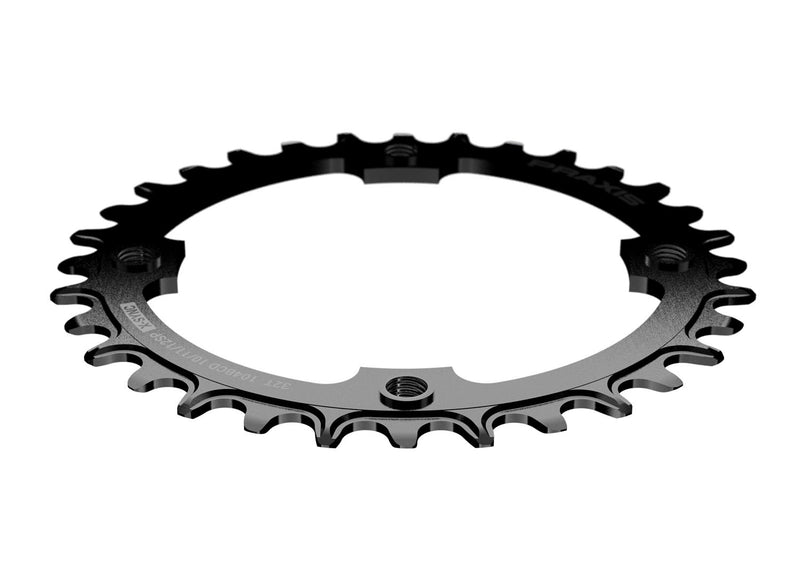

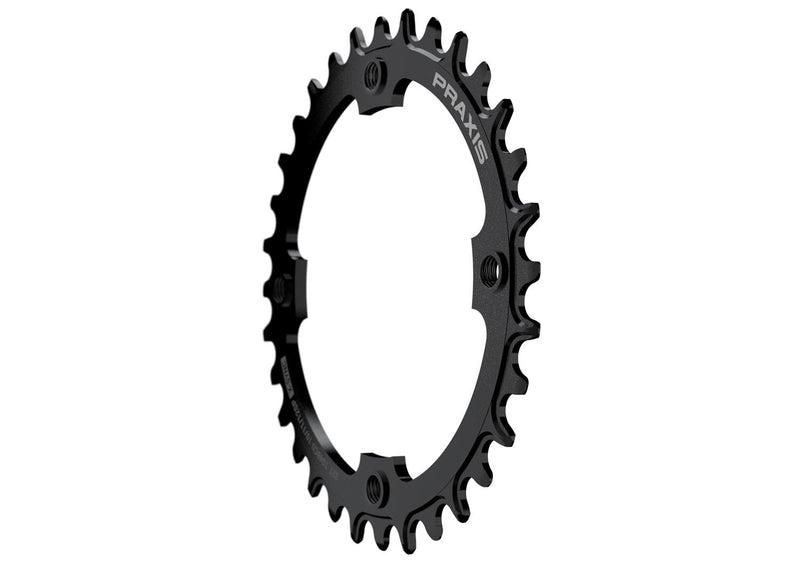

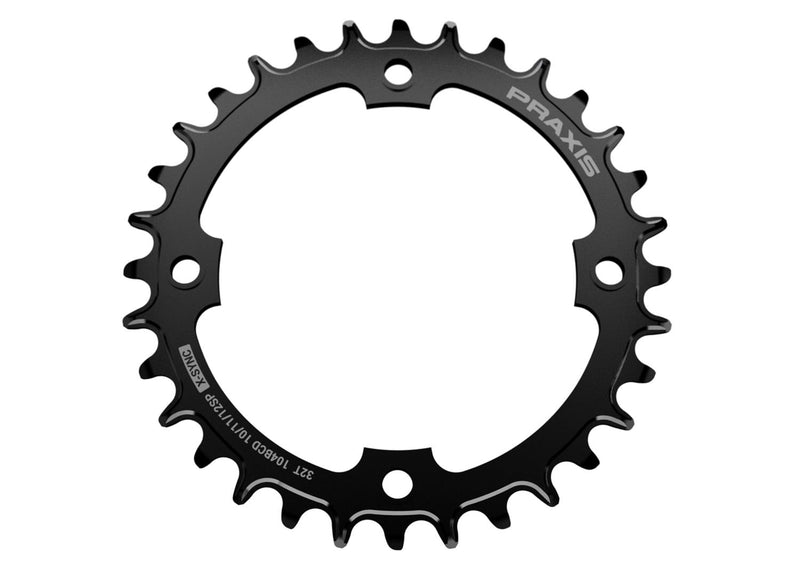

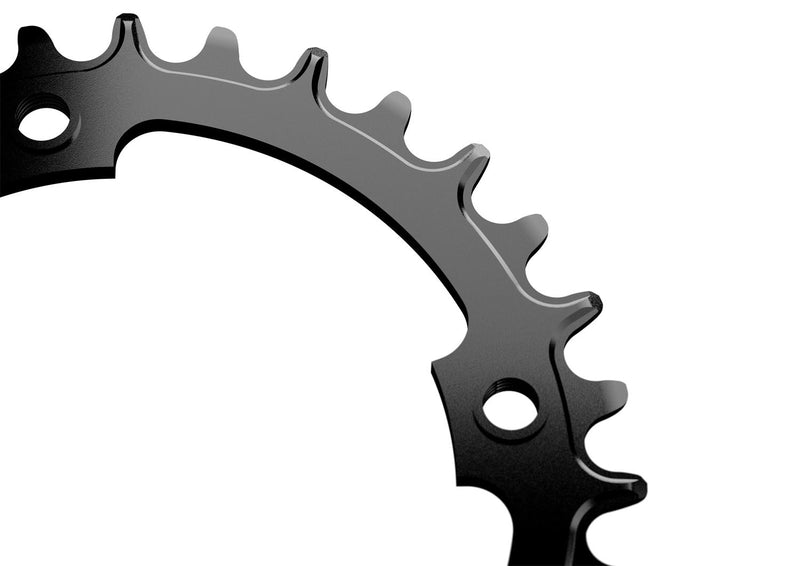

PRAXIS - MTB E-RING STEEL 104 BCD 1X NARROW WIDE
Cold forged from 4130 high-grade steel, our MTN E-Rings are designed specifically for e-MTN and longer wear.

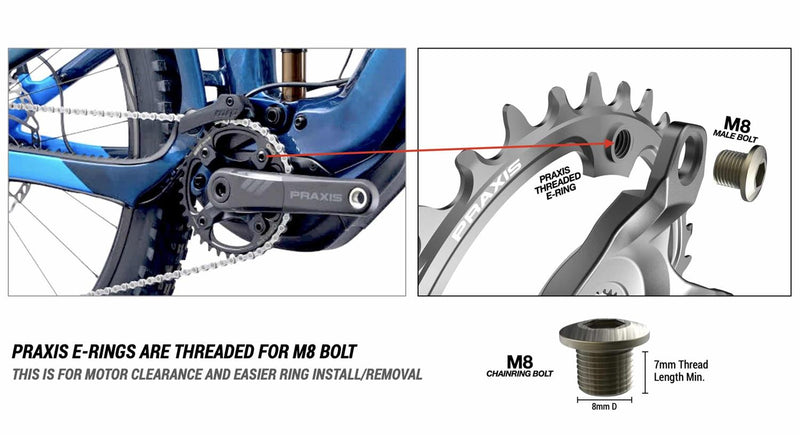

THREADED - These MTN E-Rings are ‘female‘ threaded for an M8 chain ring bolt. The M8 CR bolt threads directly into the 104BCD ring for better motor clearance. See graphic.
| PRODUCT | STEEL - DIRECT MOUNT 1X | MTN |
| BUY THIS IF : | You want Steel for a longer wearing ring. Please make sure your crank is a 3-BOLT Direct Mount Interface (see photo) |
| DESIGN/STYLE | 3-BOLT DIRECT MOUNT | NARROW/WIDE Tooth profile Different ring offsets offered for different MTN chain lines |
| MFG | Forged | 4130 Series Steel | Black Oxide |
| GEARING | 3mm OFFSET : 30 / 32 0mm OFFSET : 30 / 32 (See menu dropdown) |
| WEIGHT | 32T = 158g (Ref. Size/Weight) |
| CHAIN | Shimano / SRAM / KMC 10 / 11 /12sp Compatible |
| DRIVETRAIN | SHIMANO -Compatible with mechanical and Di2 Shimano 10/11/12sp. SRAM -Compatible with mechanical and Wireless SRAM 10/11/12sp. |
| TECHNOLOGY | Narrow Wide tooth profile |
| NOTE! | - Must use a ‘CLUTCH’ type rear derailleur. Ex: Shimano Shadow or SRAM Type2 - GUIDE -In rough terrain, or just for pure security, we still recommend use of an upper guide |
