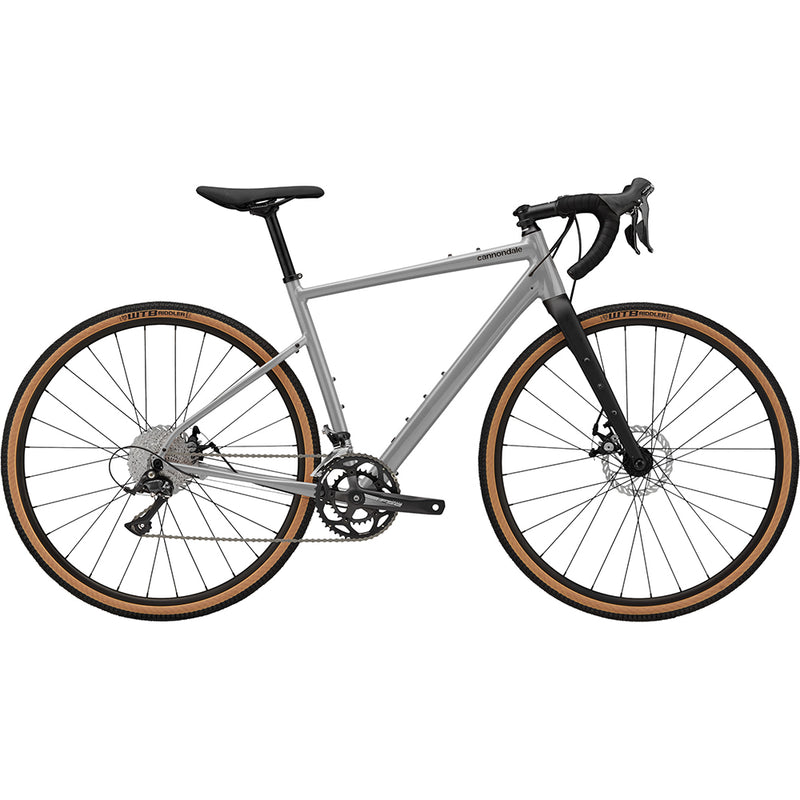

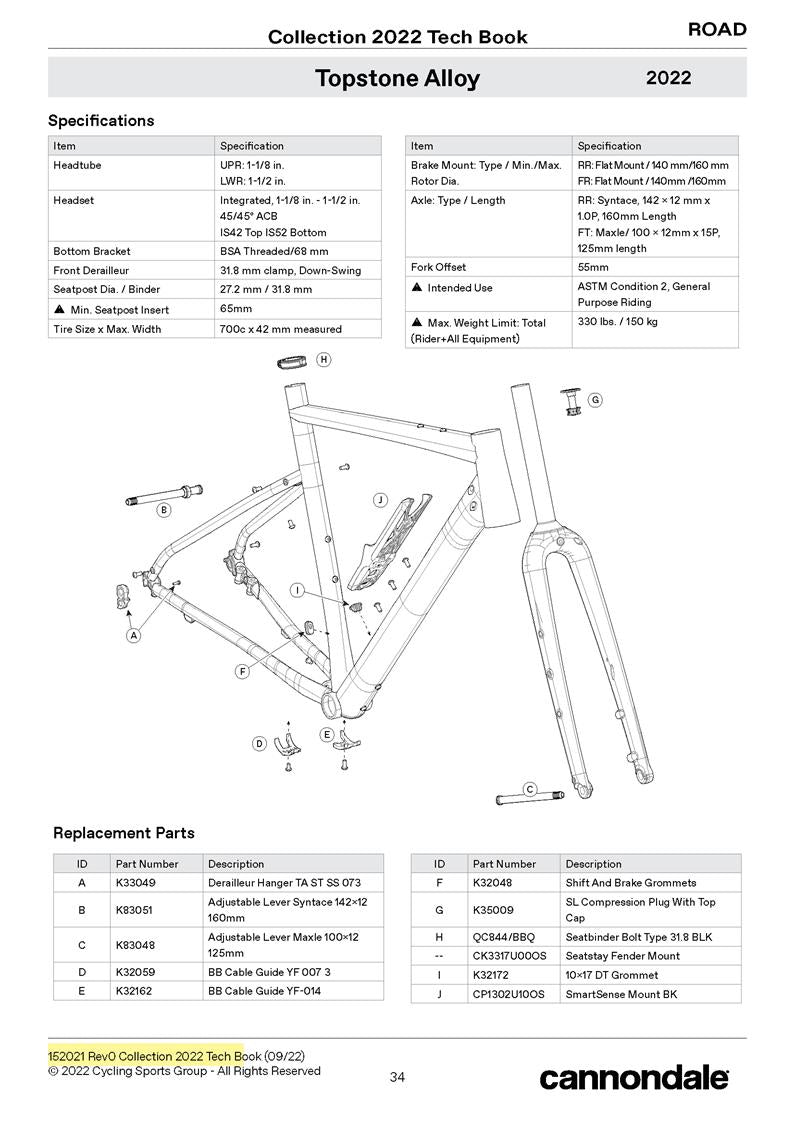

Topstone Alloy Spares 2023+
- Head Tube - Upper 1-1/8 in, LWR 1-1/2 in

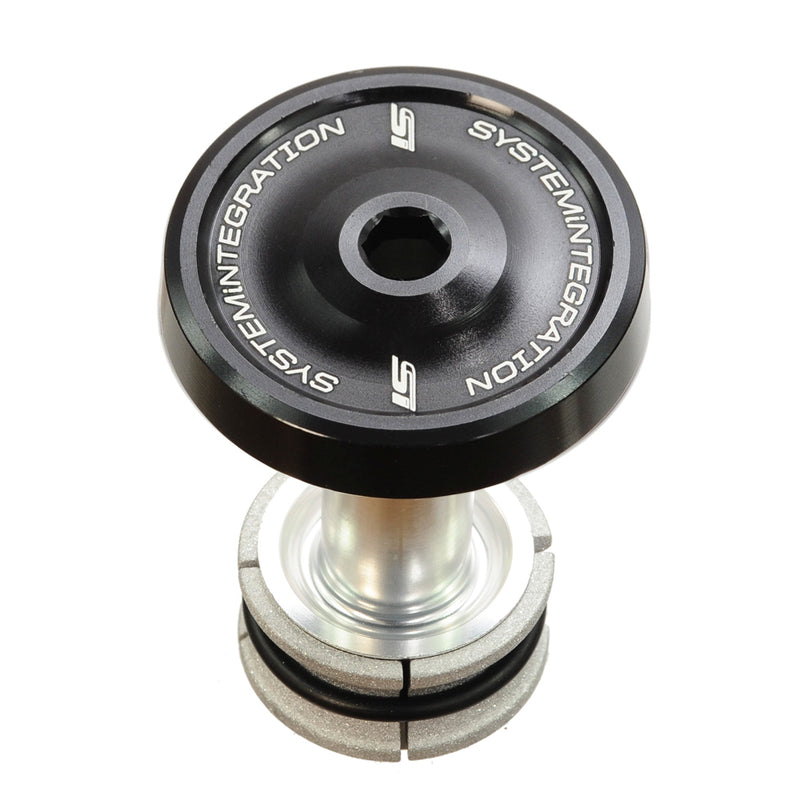

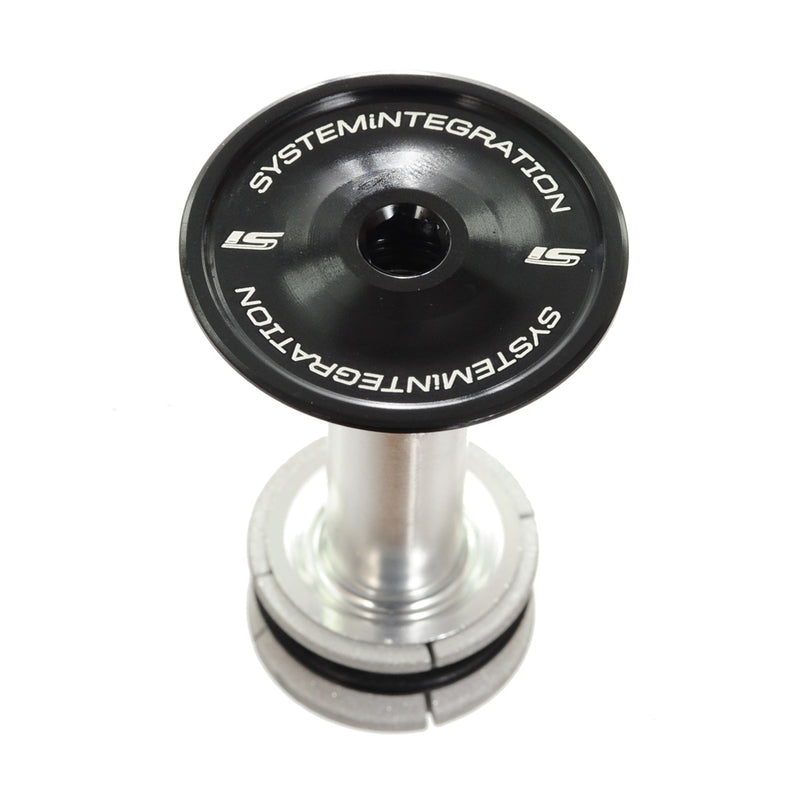

- Headset - Integrated, 1-1/8 in. - 1-1/2 in. 45/45º ACB IS42 Top IS52 Bottom
- Bottom Bracket: Type / Width - BSA Threaded/68mm
- Front Derailleur - 31.8 mm clamp, Down-Swing
- Seat Post: Dia./Binder - 27.2mm/31.8mm
- Min. Seat Post Insert - 65 mm
- Tire Size x Max. Width - 700x42mm (measured)
- Brakes: Mount Type/Min/Max Rotor Diameter - RR: Flat Mount/140mm/160mm FT: Flat Mount/140mm/160mm

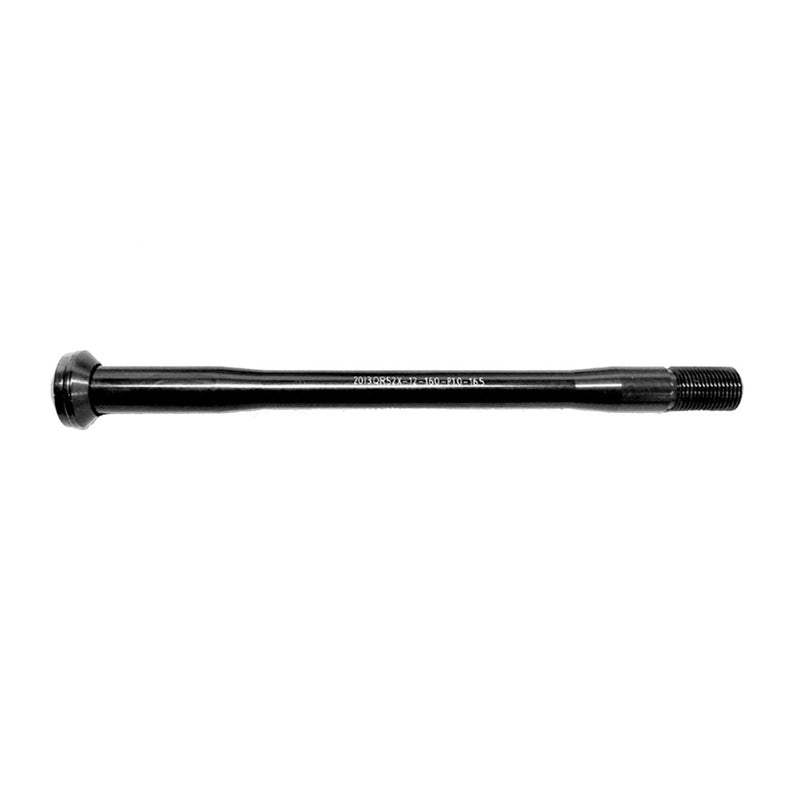

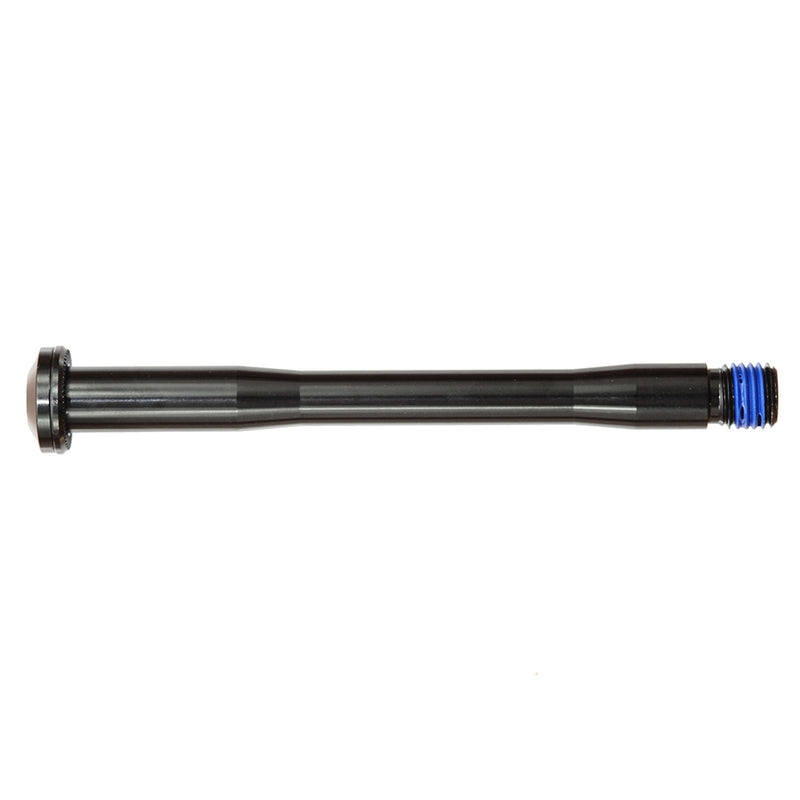

- Axles: Type/Length - RR: Syntace, 142 x 12 mm x 1.0P, 160mm Length, FT: Maxle/ 100 x 12mm x 15P, 125mm length
- Fork Offset - 55mm
- Max. Weight Limit: Total - 150kg
