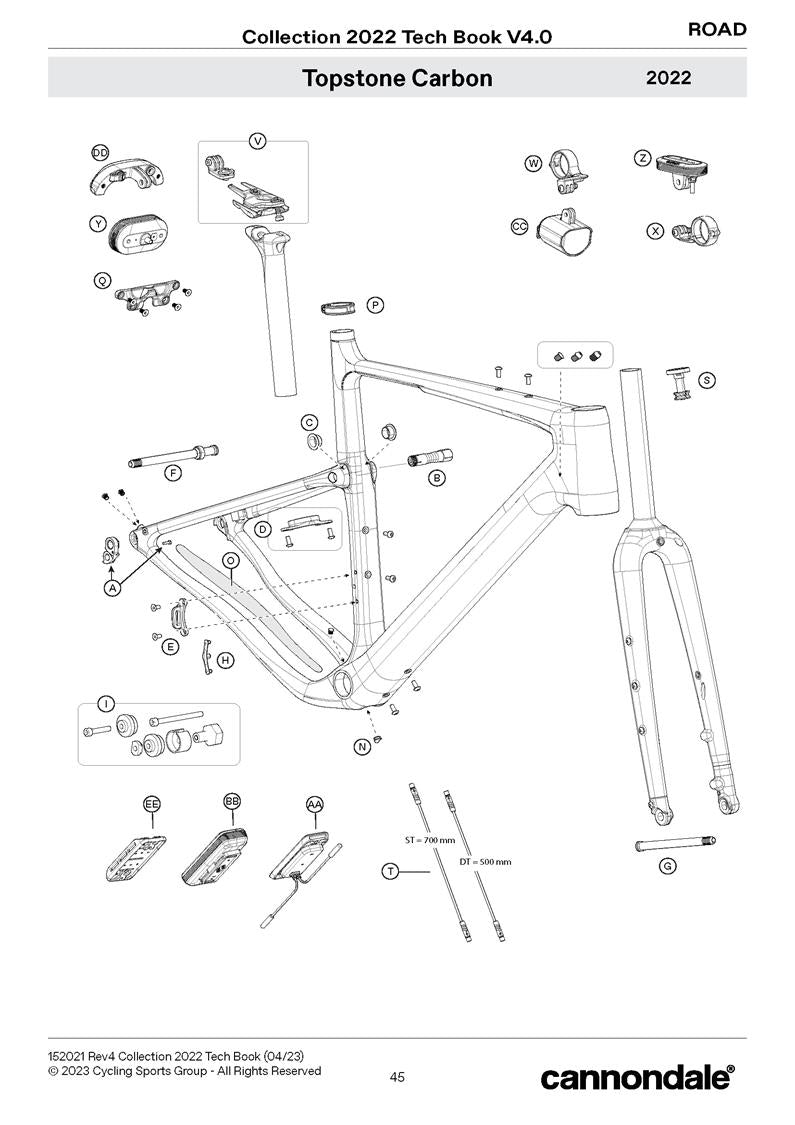

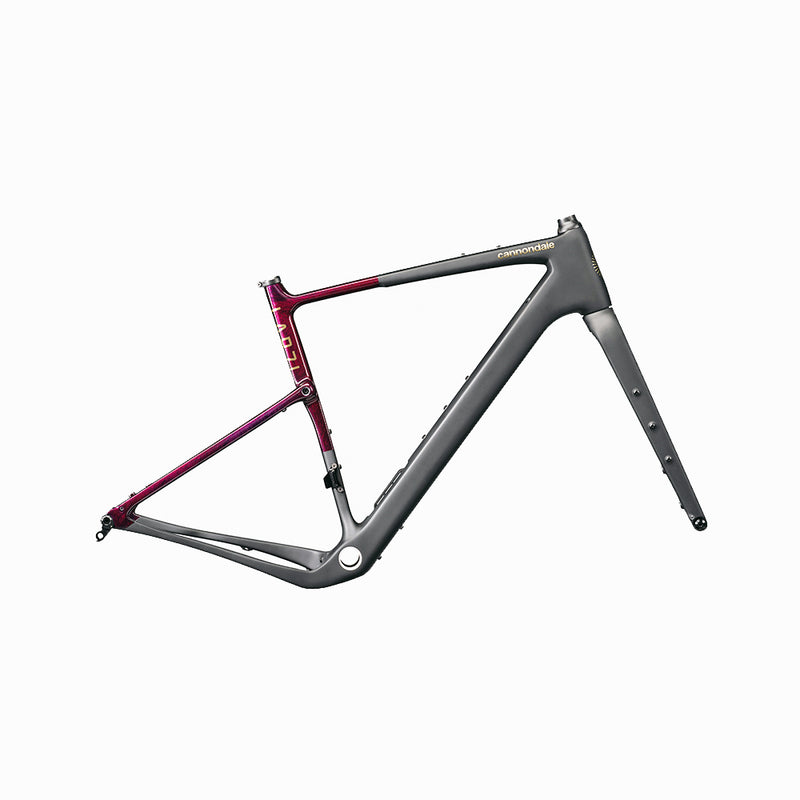

Topstone Carbon Spares 2023+
- Head Tube - Upper 1-1/8 in, LWR 1-1/2 in

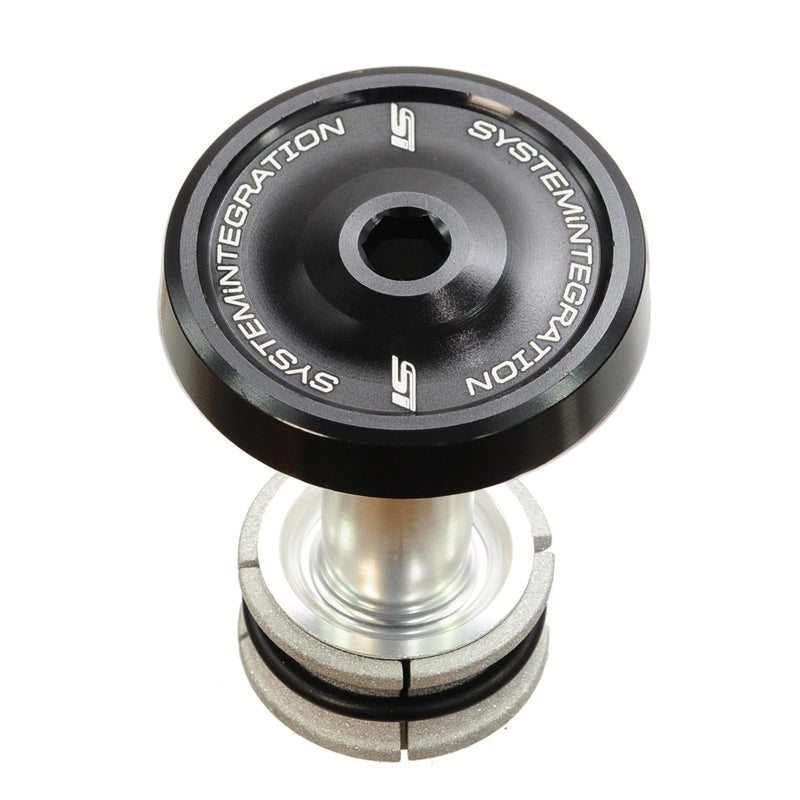

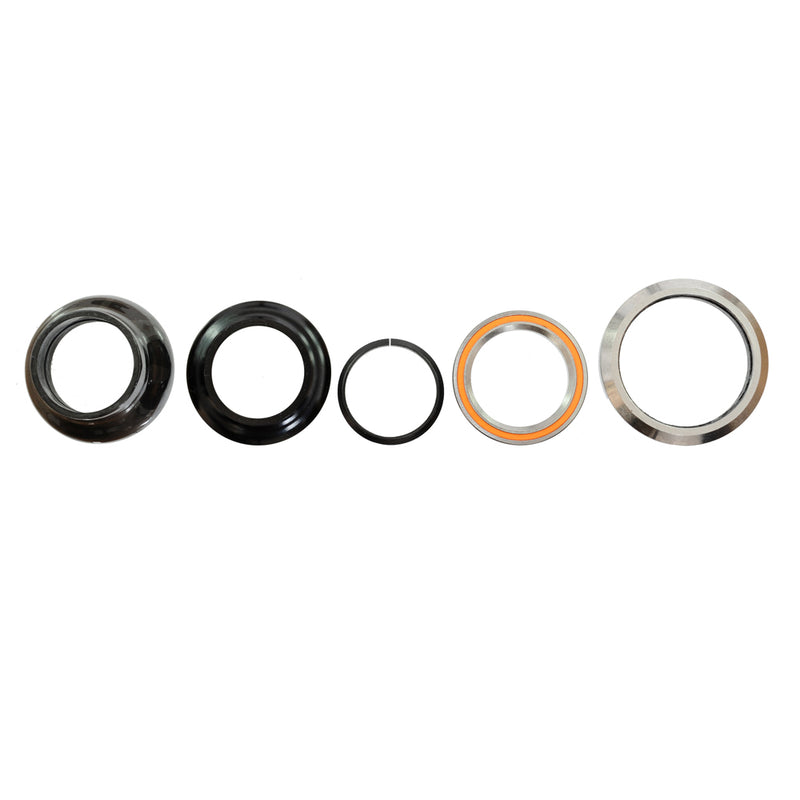

- Headset - Integrated 1-1/8 in.-1.5 in. IS42 Top IS52 Bottom 45/36º
- Bottom Bracket: Type / Width - BSA Threaded/68mm

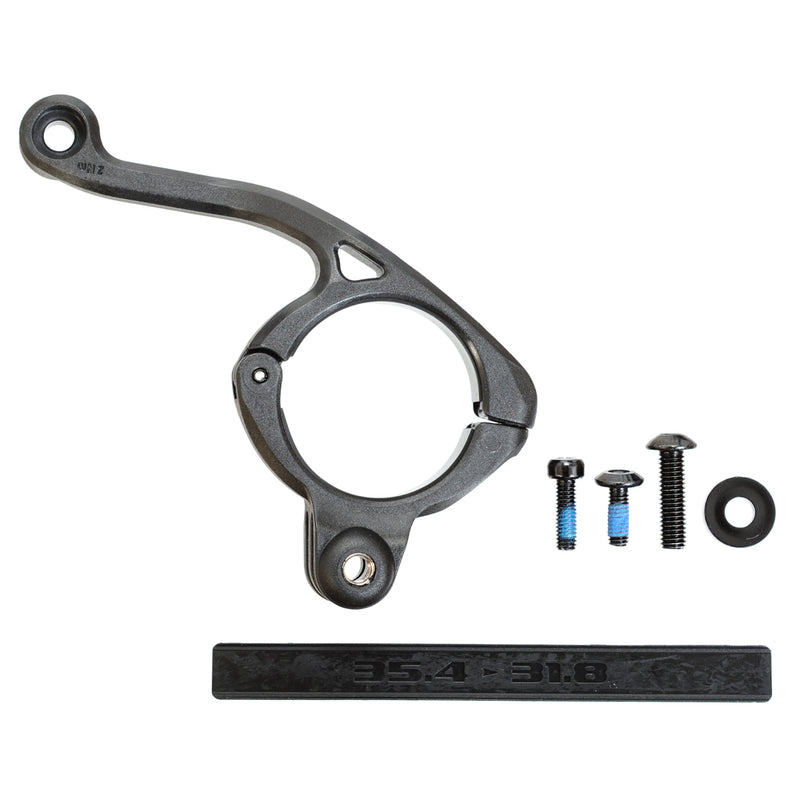

- Front Derailleur - Braze-on
- Seat Post: Dia./Binder - 27.2mm/31.8mm

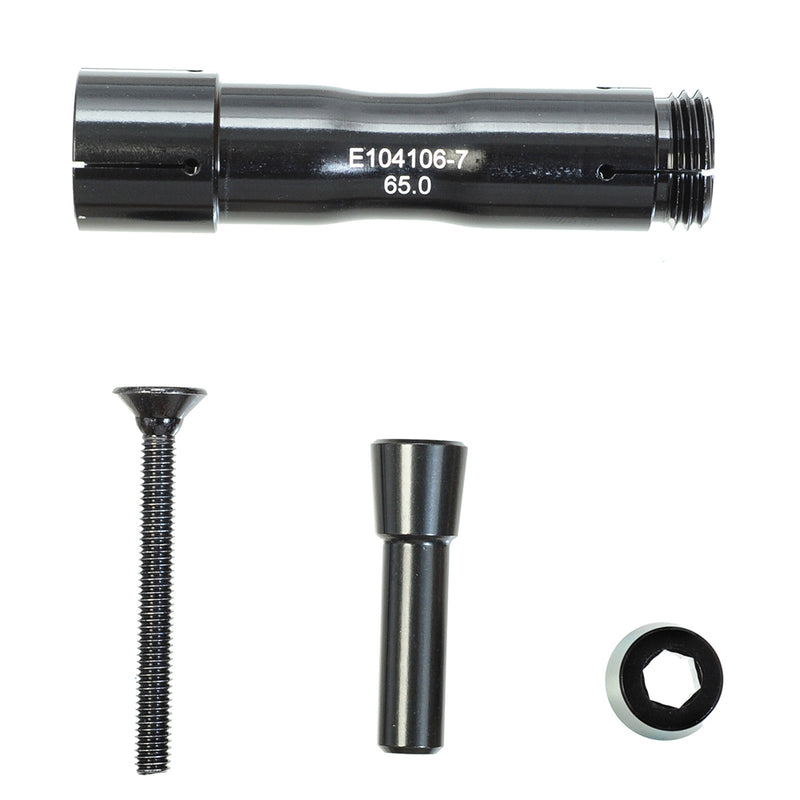

- Min. Seat Post Insert - 65 mm
- Max. Seat Post Insert - XS: 135mm, S-XL: 183mm
- Tire Size x Max. Width - 700x45mm (measured), 27.5x2.1” (measured)
- Brakes: Mount Type/Min/Max Rotor Diameter - RR: Flat Mount/160mm/180mm FT: Flat Mount/160mm/180mm

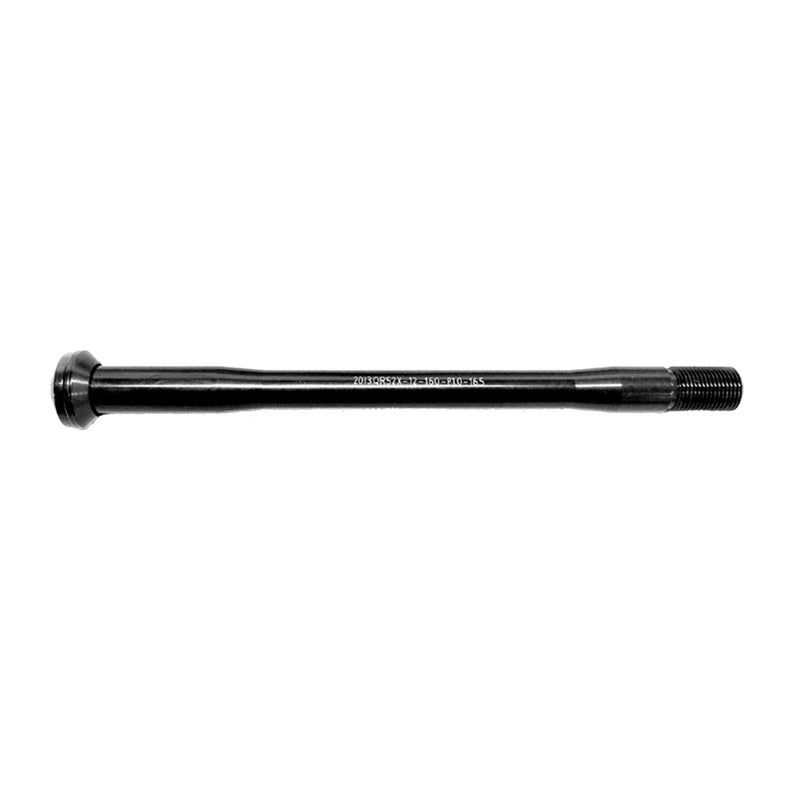

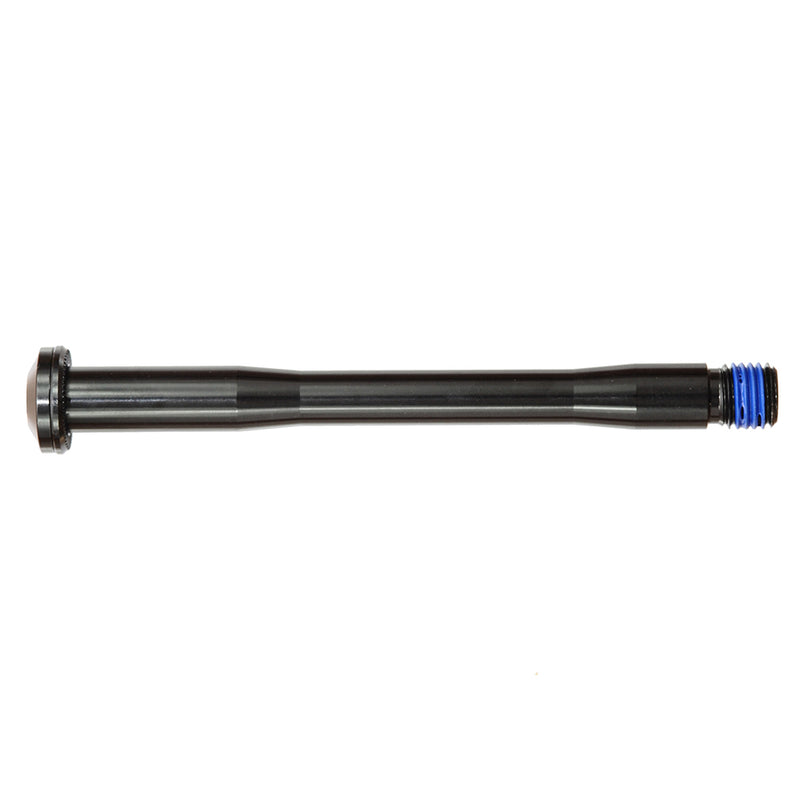

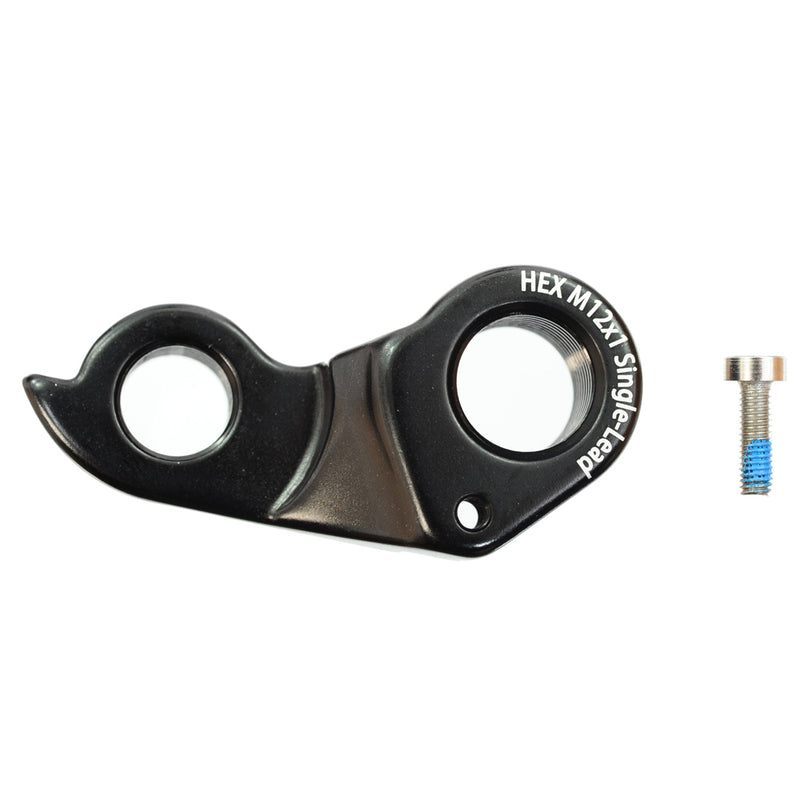

- Axles: Type/Length - RR:Syntace M12x142x1.0P, 160mm overall length FT:Maxle M12x100x1.5P, 125mm overall length
- Fork Offset - 55mm
- Max. Weight Limit: Total - 138kg
