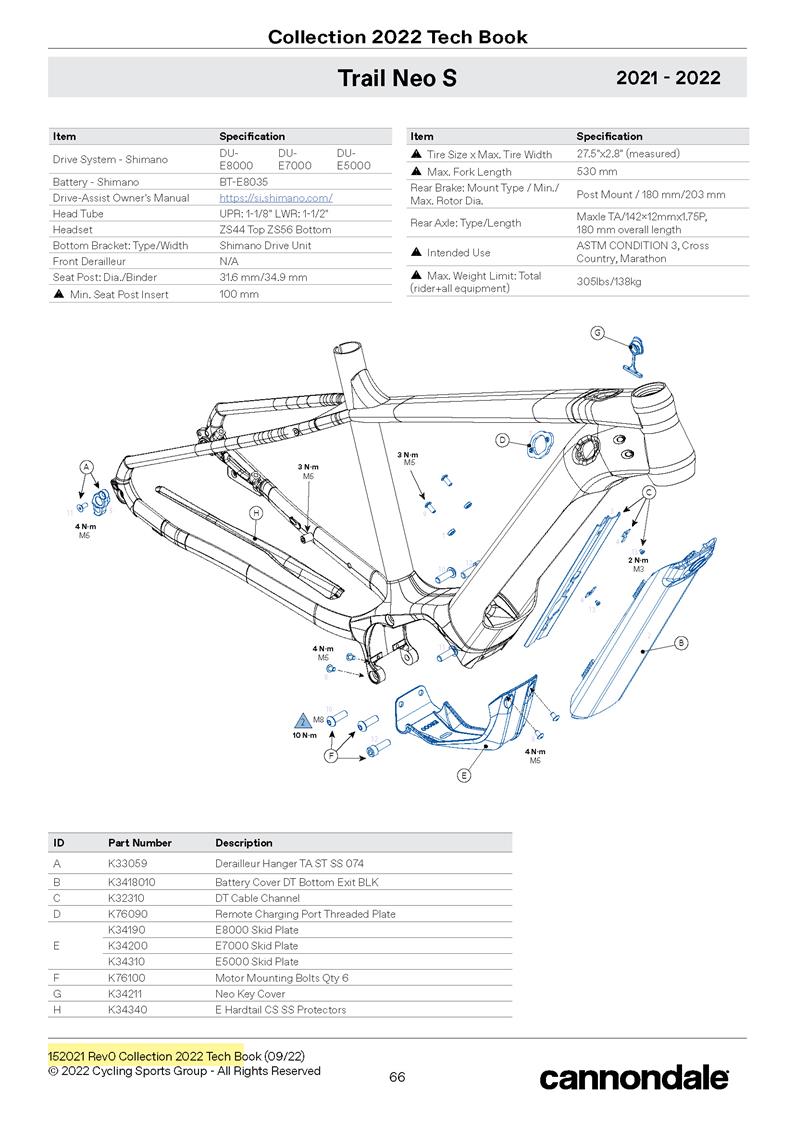

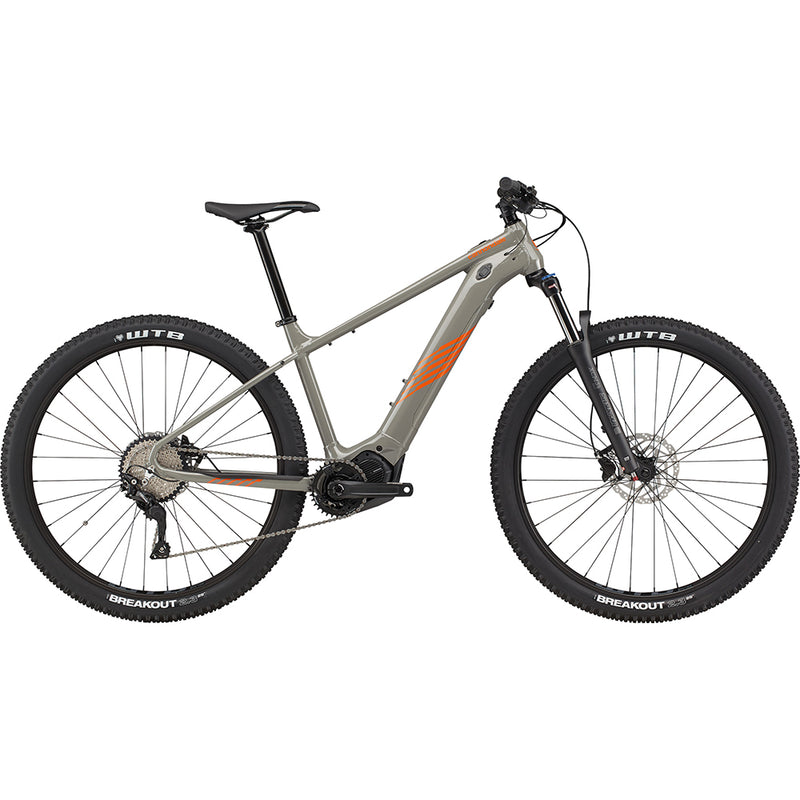

Trail Neo Alloy Shimano 2022 Spares
- Drive System - Shimano

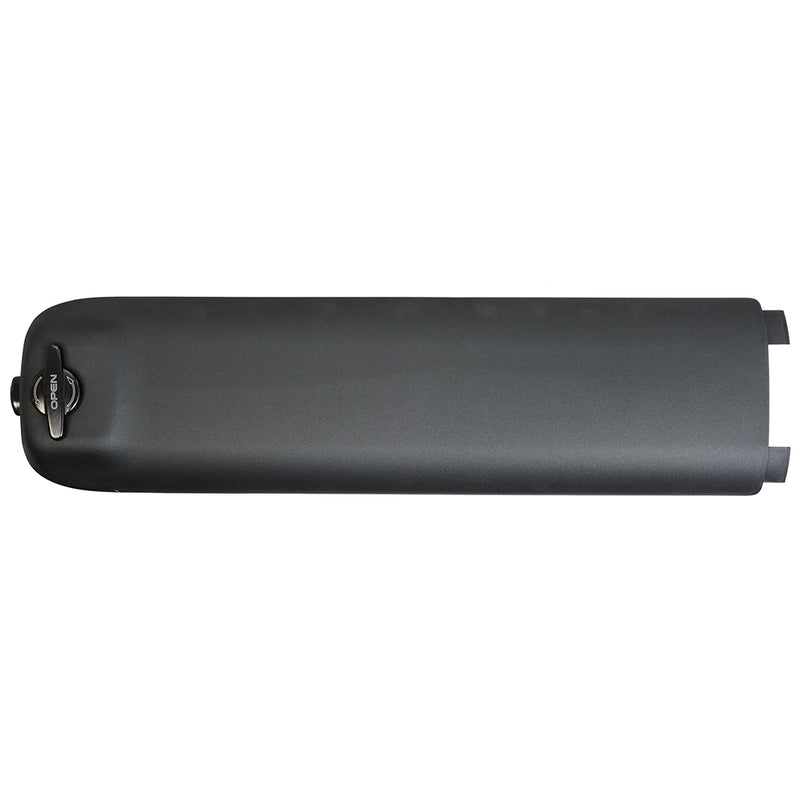

- Battery - BT-E8035
- Head Tube - UPR: 1-1/8" LWR: 1-1/2"
- Headset - ZS44 Top ZS56 Bottom
- Bottom Bracket: Type / Width - Shimano Drive Unit
- Front Derailleur - N/A
- Seat Post: Dia./Binder - 31.6mm/34.9mm
- Min. Seat Post Insert - 100 mm
- Tire Size x Max. Width - 27.5in. x 2.8in. (measured)
- Max. Fork Length - 530mm
- Brakes: Mount Type/Min/Max Rotor Diameter - Post Mount / 180mm / 203mm
- Axles: Type/Length - Maxle TA/142x12mmx1.75P, 180 mm overall length
- Max. Weight Limit: Total - 138kg
