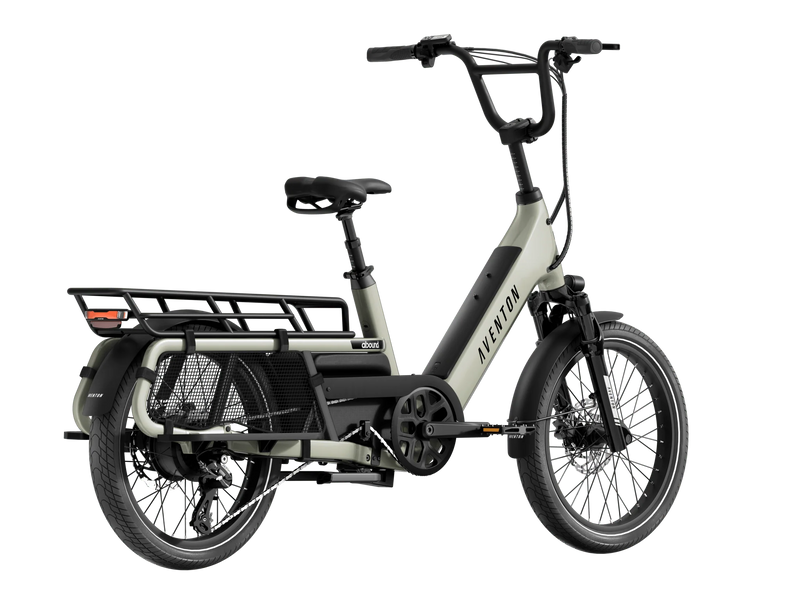

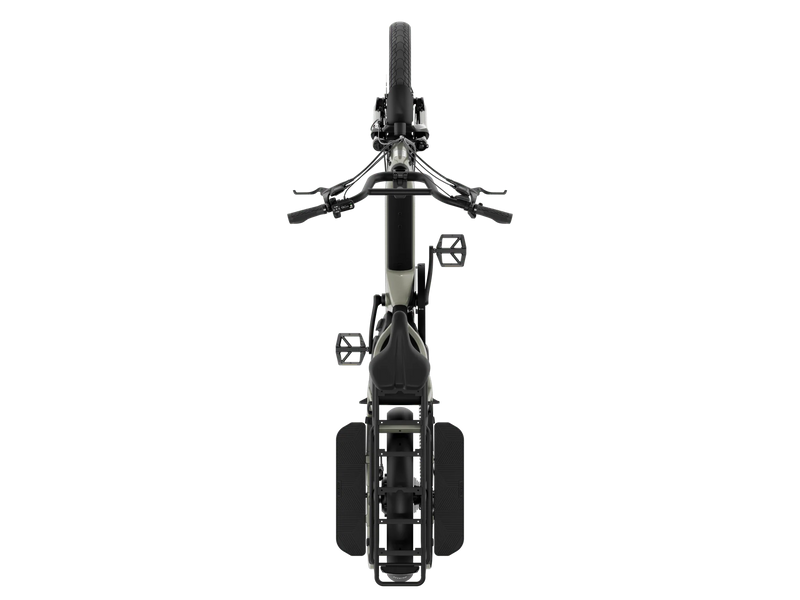

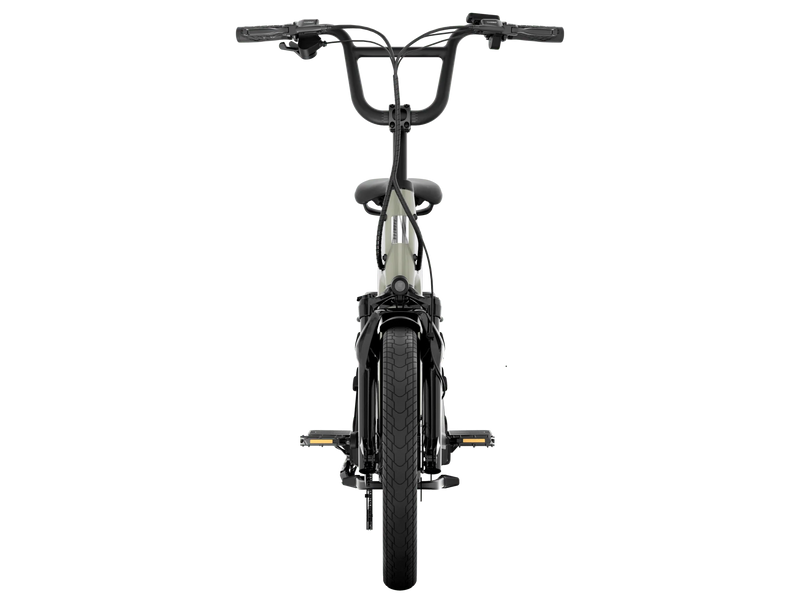

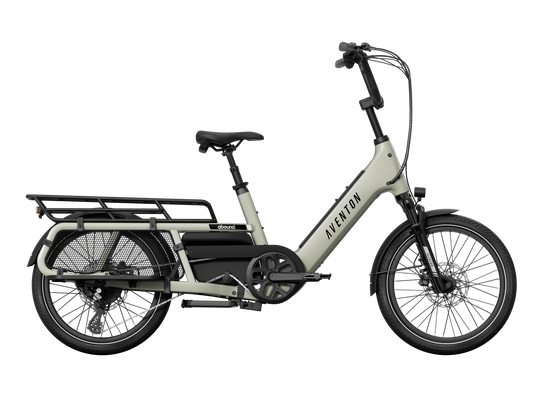

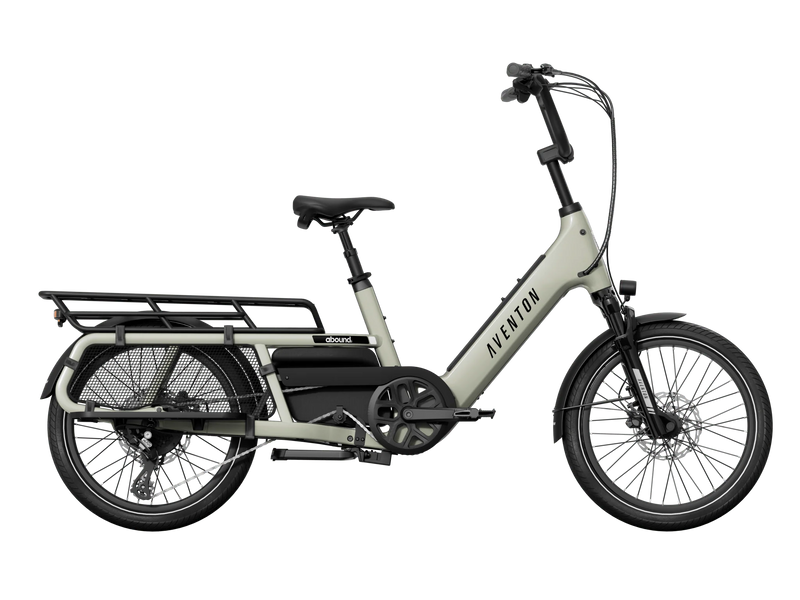

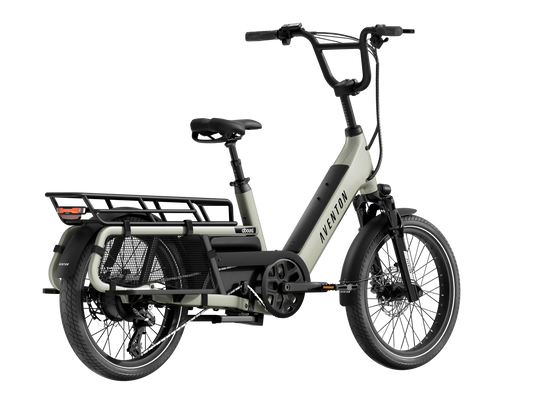

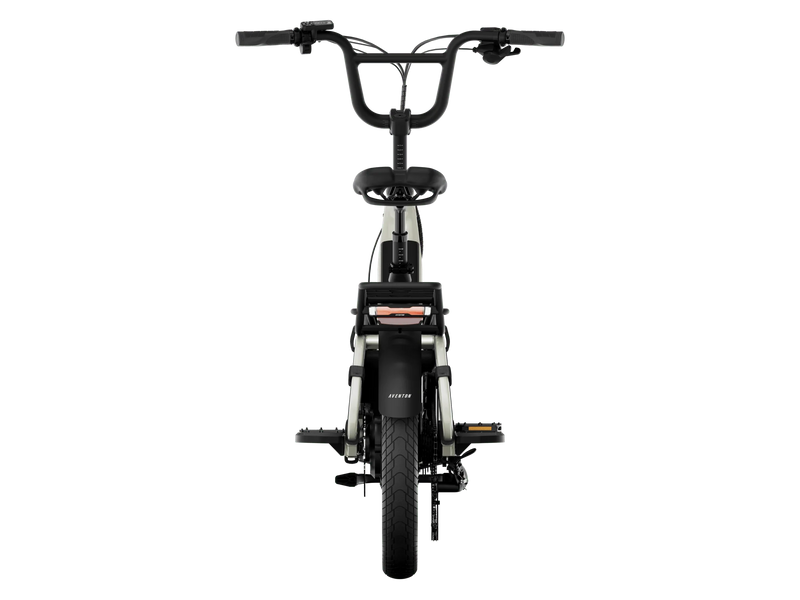

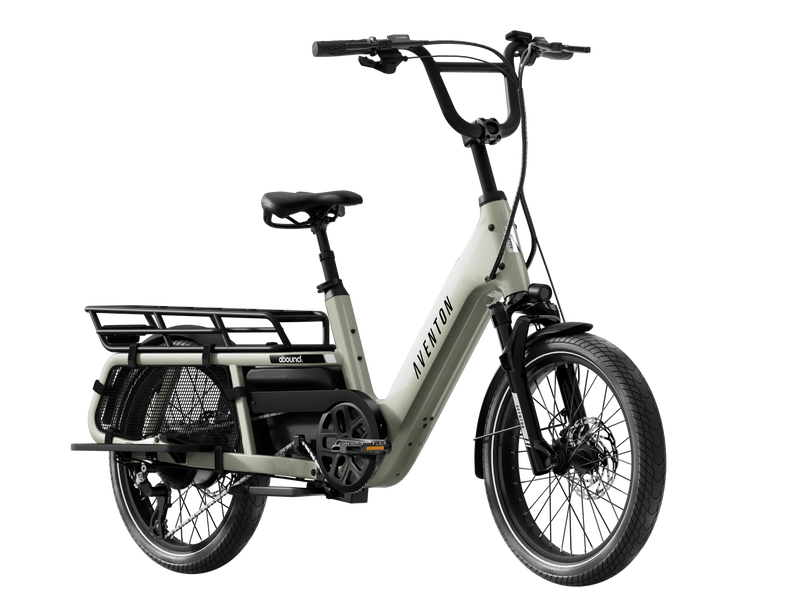

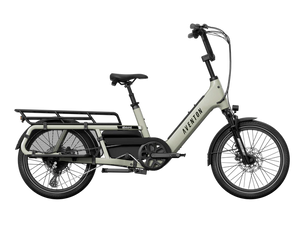

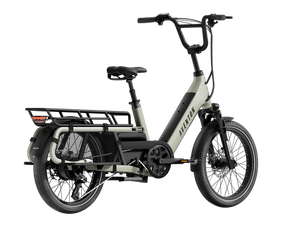

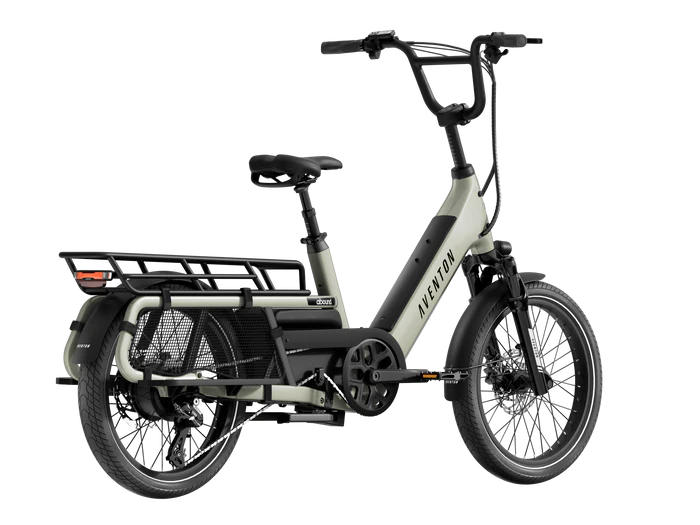

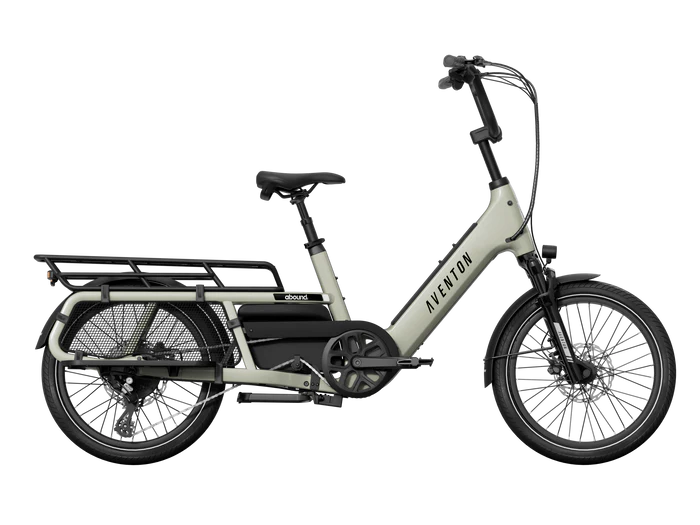

Aventon Abound LR Cargo (Pre Order Now)

Regular price $4,199.00
Sale price $4,199.00 Regular price
Sale Sold out
Unit price
/per
Tax included.
This is a pre order item. We will ship it when it comes in stock.
Specifications

Pre-order now for ETA into NZ October with a $500 deposit

Free Cratoni helmet of your choice with every pre-order.

From the USA's #1 e-bike brand, the Abound LR is the answer to all your cargo conundrums! The powerful motor, long rear rack, and 200kg payload capacity make this the ultimate cargo carrier. Whether you're loading up the kids, your beach day essentials, or your most ambitious grocery haul, the Abound LR is ready to take on any challenge. With a gravity cast frame, adjustable quill stem, front suspension, and suspension seatpost, you can ride confidently and comfortably no matter what you're bringing along. Built-in indicators provide better safety when riding around town. With the addition of ACU technology, you'll rest assured knowing you can locate and control your bike from anywhere. The possibilities for what you can carry are endless, so load up and enjoy the ride with Abound LR.



E-Bike System

  • Motor: Shengyi 36V 750W Hub Drive with 6 speed sensors (1188W peak)
  • Torque: 80 Nm
  • Riding Mode:

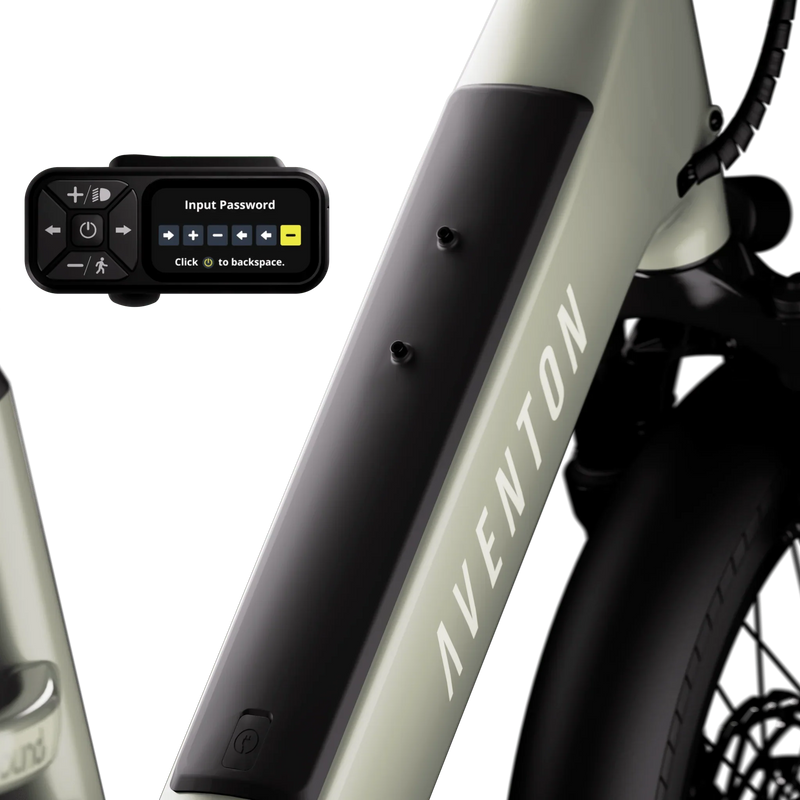

  • Display: Aventon BC147
  • App & Tech Features: Aventon App (Change Settings, Track Metrics & Rides, Milestone Medals, Connect with Aventon ebike riders, Tech Support)

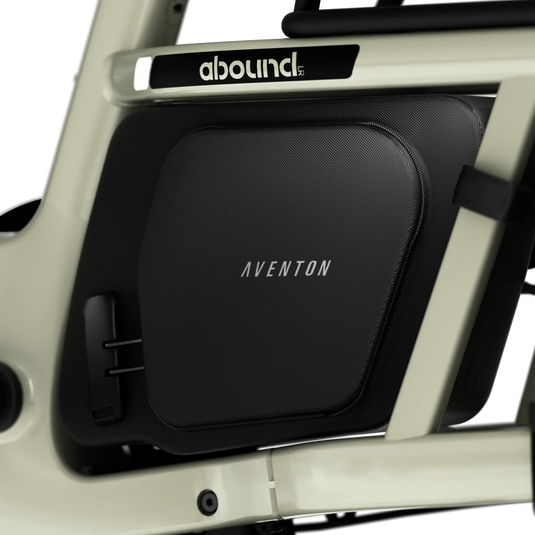

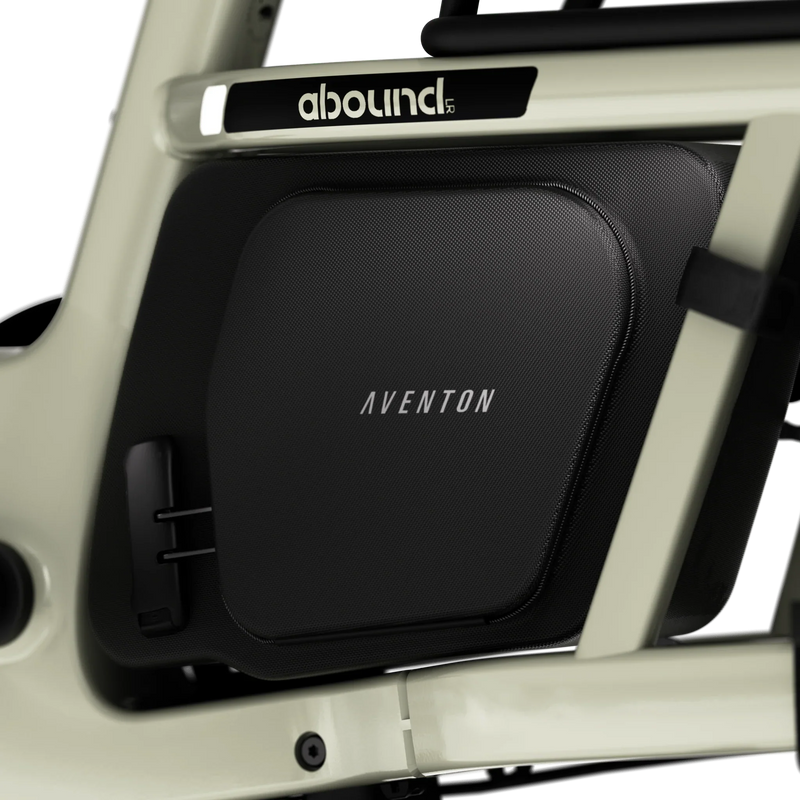

  • Battery: 733Wh 36V20A Removable Internal Li-ion LG 21700 cells
  • Battery Weight: 8.7 lbs (4 kgs)
  • Charger: 42V4A
  • Charging Time: 50%: 2.5 hours, 100%: 5 hours
  • Speed: 32kmh/20mph
  • Range: Up to 97 kms/60 miles
  • Parts Warranty: Frames & components: 2 years
  • Certification: UL 2271, UL 2849



Bike Specification

BIKE

  • Frame: Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery
  • Sizes: One Size 15" (4'11" - 6'3")
  • Brakes: Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire 180mm/203mm

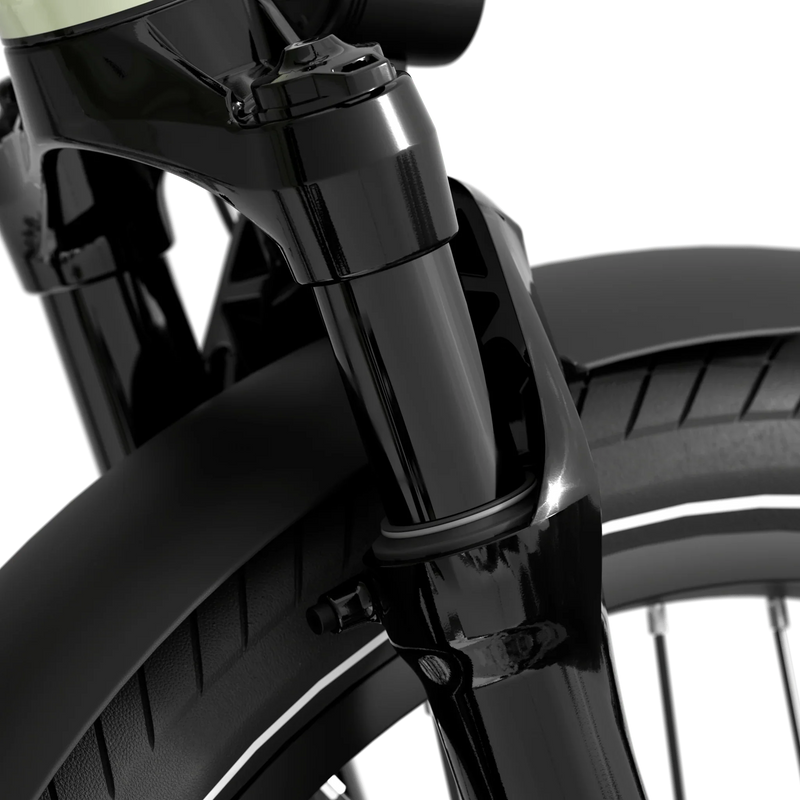

  • Fork: Threaded Steerer Tube for Quill Stem 15x110 spacing, 51mm travel, adjustable lockout black stanchions
  • Rear Shock:
  • Tires: 20x3.0 Innova IA-2131 Urban Tire Refective Sidewalls
  • Weight: 88 lbs (40 kgs)
  • Load: 440 lbs (200 kgs)
  • Included Accessories: Rack, fenders, lights

DRIVETRAIN

  • Gears: Shimano Altus RD-M310 8 Speed
  • Shifters: Shimano 8 Speed Trigger SL-M315-8R
  • Crank: 3-piece 165mm crank arm
  • Rear Cogs: 12-32T / 8 Speed Shimano CS HG200-8
  • Bottom Bracket: Square Taper, Sealed, Dual-Sided Torque Sensor
  • Chain: 7/8 speed 154L

COCKPIT

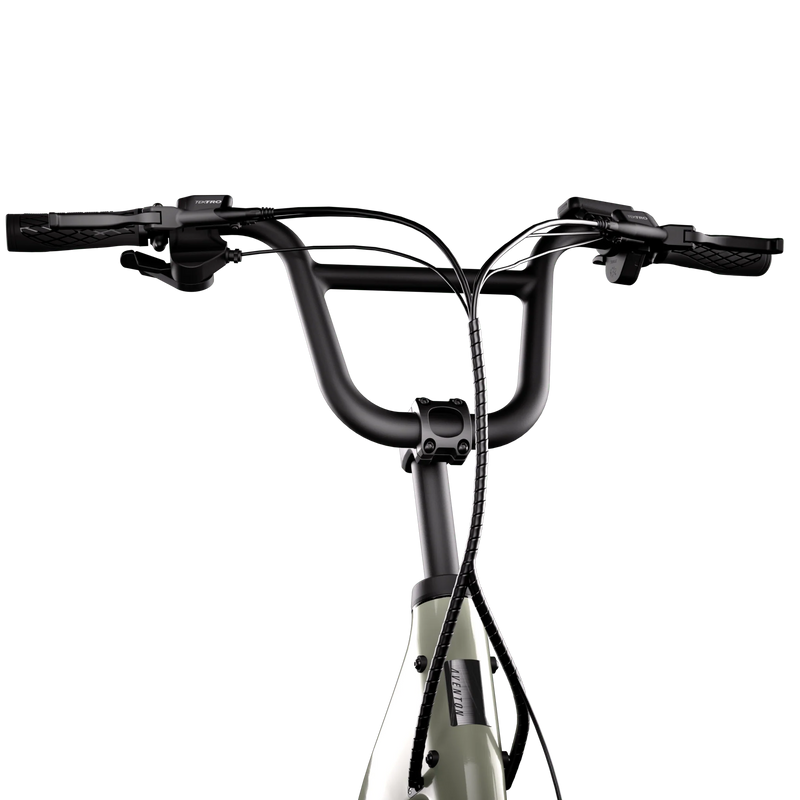

  • Handlebar: BMX Style Aluminum 31.8mm, 720mm
  • Stem:
  • Headset:
  • Grips: Aventon Ergonomic Comfort lock on grips

FINISHES

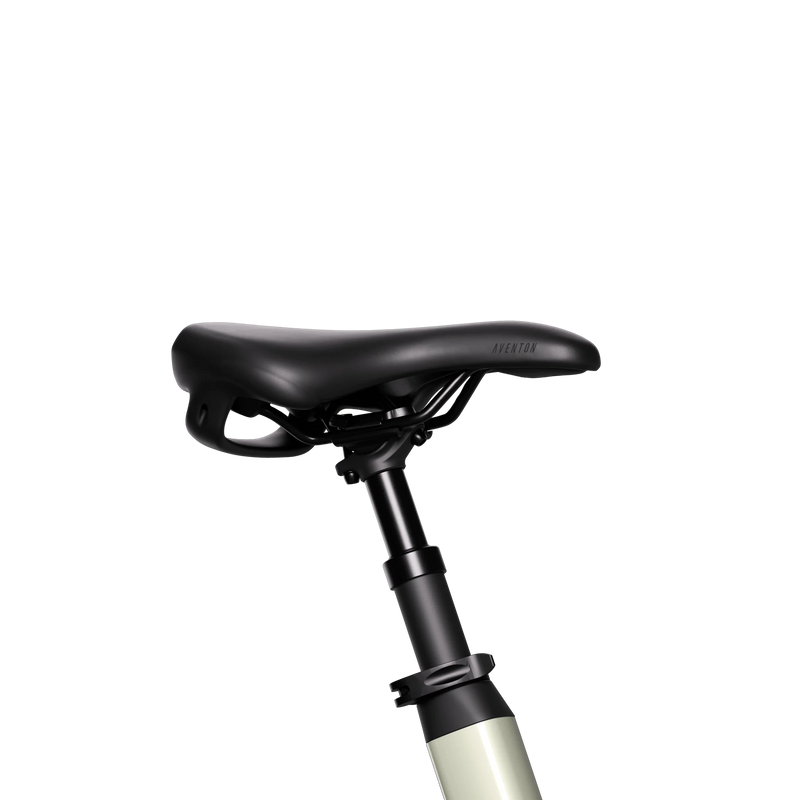

  • Saddle: Aventon Saddle w/ grab handle by Selle Royal
  • Seatpost: Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
  • Lights: Front and Rear Lights Integrated w/ Turn Signals
  • Fenders: Included

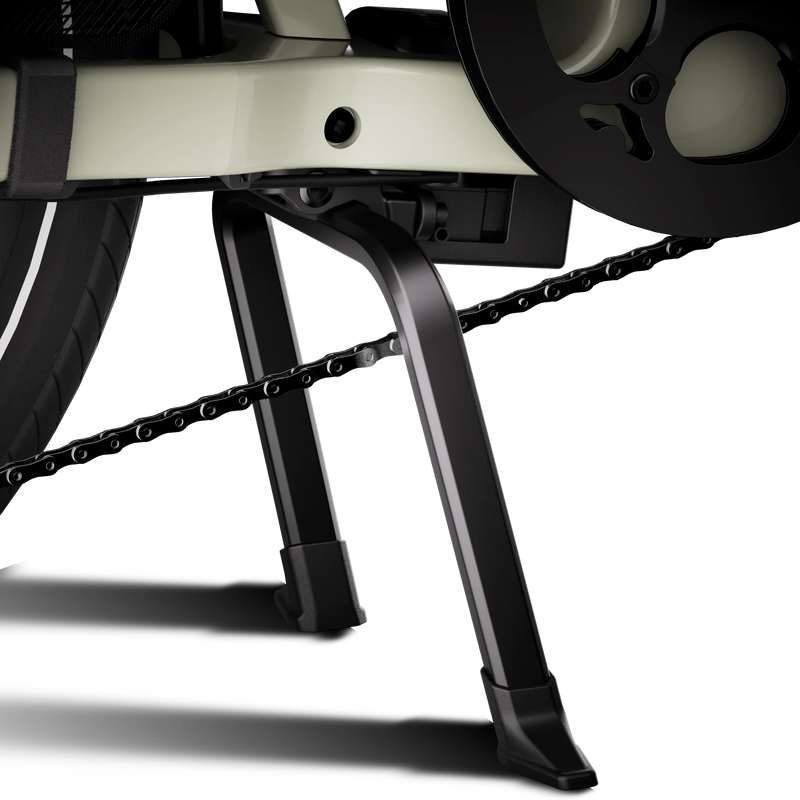

  • Kickstand:
  • Rack: Included (143 lbs capacity)
  • Pedals: 9/16" Composite Platform
  • Bell



Size & Fit
