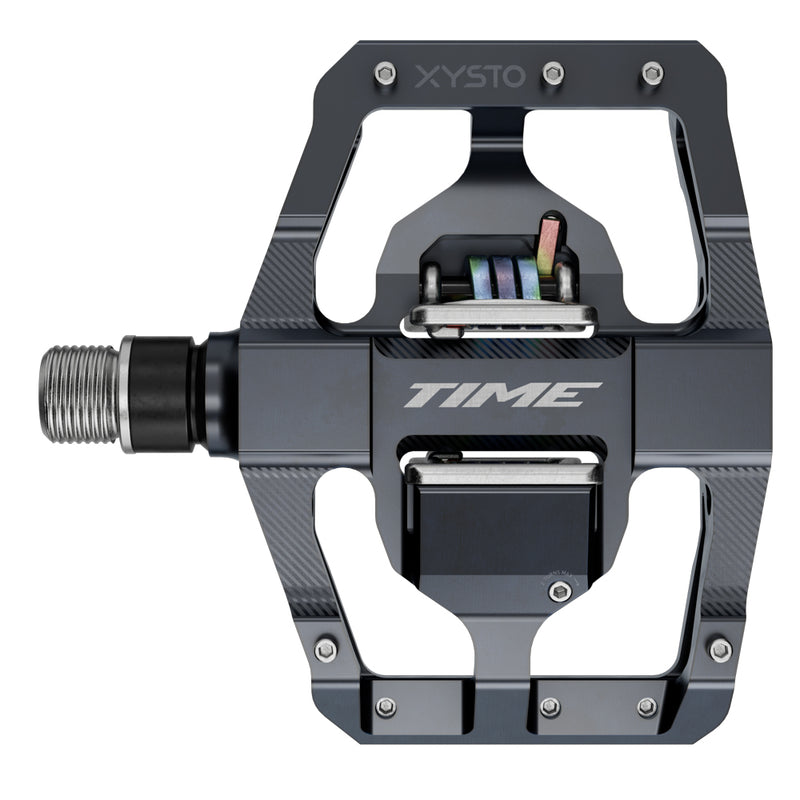

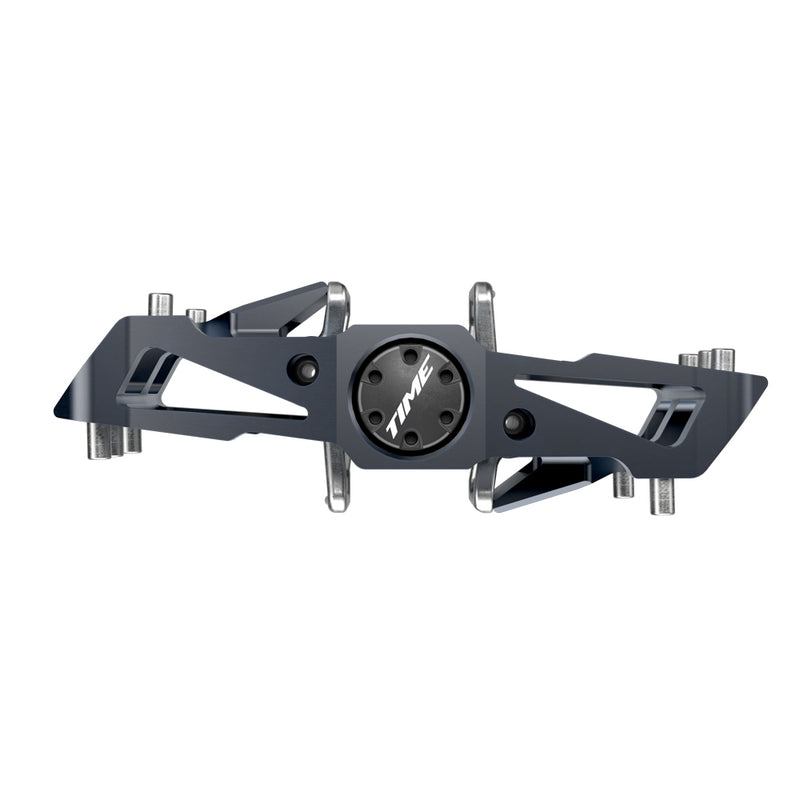

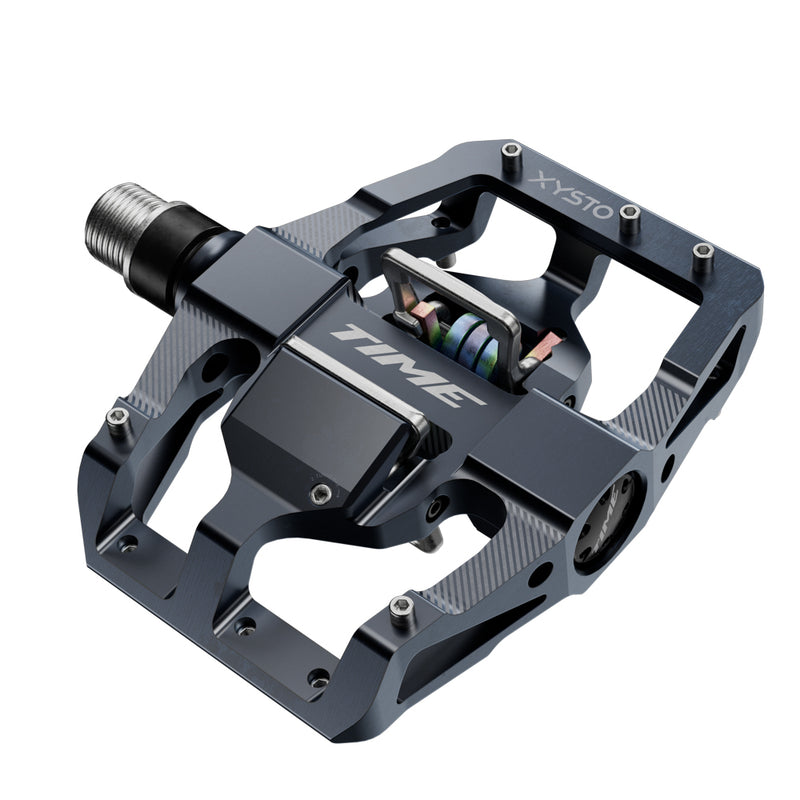

Inspired by the xisto stone villages and trails found near our facility in Portugal, the TIME XYSTO (pronounced 'She-stoh') is a robust full-bodied pedal system designed for the modern DH, Enduro, and aggressive off-road rider. Customizable grip pin placement allows the pedal to adapt to the rider, not the other way around. Our proven ATAC Technology clears dirt and debris upon entry and allows for natural foot movement.
SPECIFICATIONS
Axle component
Steel axle
Bearings
Steel
Body component
6106 T6 - Aluminum
Cleats
ATAC cleats
Pedal stack height
18.3mm
Angular freedom
5° to -5° with free cleats, 0° with fixed cleats
Contact surface area
n/a
Distance pedal spindle / crank arm
57mm
Lateral freedom
2.5 mm or -2.5 mm
Release angle
10° with ATAC Easy cleats, 13 or 17° with ATAC cleats
Tension
Micro adjustment
Threading
9/16 - 20 inch
Platform Size
X-Large (79 X 94 mm)
Color (Pedal)
Dark Grey
Accessories
ATAC CLEATS AND 20 GRIP SCREWS
Intended use
Gravity
Power Measurement
Not Compatible
Weight (per pedal)
226g
FEATURES
Extra-large 79x94mm platform provides additional support and control
Asymmetrical design fits the natural shape of your sole
Customizable grip pin placement
Adjustable release tension
ATAC design clears mud and debris every time you clip in
Easy engagement and performance in all conditions
Dark Grey alloy anodized platform
57mm spindle length
226g per pedal
13/17° cleats included with pedals
Made in-house in Coimbra, Portugal
